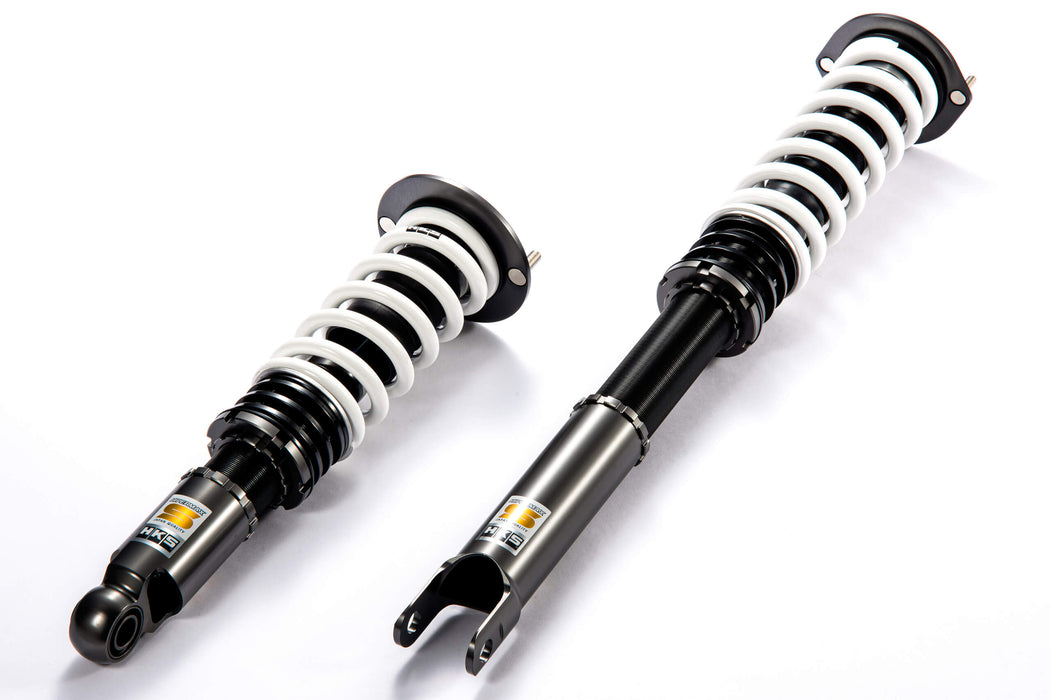

HKS COILOVER SUSPENSION FULL KIT HIPERMAX S - BCNR33 BNR34

'--- 2-3 week lead time ---
SPECIFICATIONS:
BCNR33
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 88(9)
- Rear: 78(8)
Free Height (mm):
- Front: 200
- Rear: 250
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±10 ( 1 )
- Rear: ±10 ( 1 )
Damper Force (Rebound/Damping):
- Front: 927/260
- Rear: 564/324
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Normal
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Coilover
Damping force adjustable with Wire:
- Front: N/A
- Rear: Yes
Helper Spring (Spring Rate N/mm):
- Front: 19.8
- Rear: 19.8
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: -20 ~ -89
-- Rear: ~ -62
-Drivable Range High - Low (mm):
-- Front: -20 ~ -89
-- Rear: ~ -62
